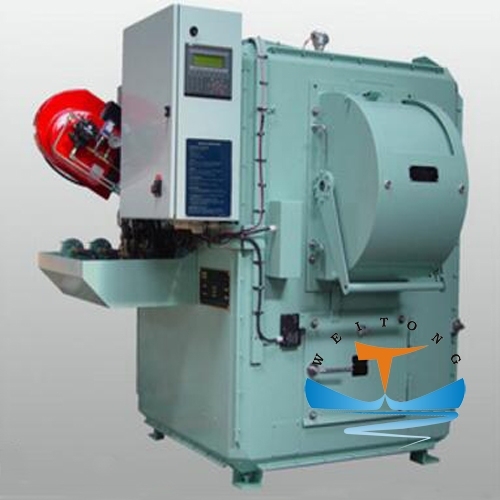

Name: Sewage Sludge Incinerator for Offshore
Brand: WEITONG MARINE
Availability: InStock
Rating: 5 (1 reviews)

Home > Marine Pollution Prevention Equipment > Marine Incinerator

Description

Sewage Sludge Incinerator for Offershore
Sludge Oil Incinerator is world leading product, designed to be used to incinerate waste oil and bilge water and sewage and the garbage. Such as: sludge oil, plastics, paper, cardboard, wood, rubber, cloth, oily rags, food waste and hospital waste. It is the main pollution control equipment for offshore platform, ships and vessels, also the waste burning equipment on land.
The incinerator is equipped with a door in front for loading of solid waste and removing of ash which can be opened only while the flue gas fan stops and combustion chamber temperature is below 80℃.
The electrical control panel is installed on the incinerator and it contains fuses, starters,PLC and operator panel. The electric panel is built according to international standards for marine equipment. The operator panel which is located at the right side of the control panel has a touch screen and defined keys for system starting /stopping and selecting burner modes
Comparing with the other similar incinerator, this type of incinerator has good features of big burning capacity, less space occupied and reliable function. While burning wastes, the flue gas coming out of this incinerator without color, smoke, smell, only with less dust, and no poisionous.
So it will not cause the second pollution. The structure of this equipment is designed to be dismountable. Easier for installation and maintenance.
Main features of the Incinerator
(1)Man-Machine dialogue interface for convenient operations.
(2)Continuous solid waste loading device with pneumatic control, as an option.
(3)Sludge agitation by a recirculation pump to obtain best mixture.
(4)Three options of sludge heating source, including electrical elements, steam coil or thermal coil.
(5)Immediate working condition traceability.
Sewage Sludge Incinerator for Offershore Specification

Maximum Heat Capacity		40X104kcal/h(465kw)
Handling	solid waste	≤40kg/h
	sump oil	≤44L/h
	sump+solid waste	Sump oil	≤38L/h
		Solid waste	≤22kg/h
Combustion	Maximum temperature	1100℃

	Operating temperature	850～1100℃
Flue gas	Maximum temperature	350℃
	Operating temperature	250～350℃
Surface temperature		Not higher 20℃than environment temperature
		and the higheast temperature is no more than 60℃
combustion chamber negative pressure		5～35 mmWC
Fuel consumption		13～38 L/h
contour dimension		L X B X H = 1890 X 1700 X 1960mm
Power consumption		15 Kw
Total weigth		3300 kg
Power source		3-phase/AC380/50Hz or 3-phase/AC440V/60Hz
