Q96D-HC/Q96D-HCA/Q144D Marine Frequency Meter
Q96D-HC/Q96D-HCA/Q144D Marine Frequency Meter Q96D-HC/Q96D-HCA/Q144D Marine Frequency Meter Q96D-HC/Q96D-HCA/Q144D Marine Frequency Meter Q96D-HC/Q96D-HCA/Q144D Marine Frequency Meter Q96D-HC/Q96D-HCA/Q144D Marine Frequency Meter Q96D-HC/Q96D-HCA/Q144D Marine Frequency Meter
  • Q96D-HC/Q96D-HCA/Q144D Marine Frequency Meter
  • Q96D-HC/Q96D-HCA/Q144D Marine Frequency Meter

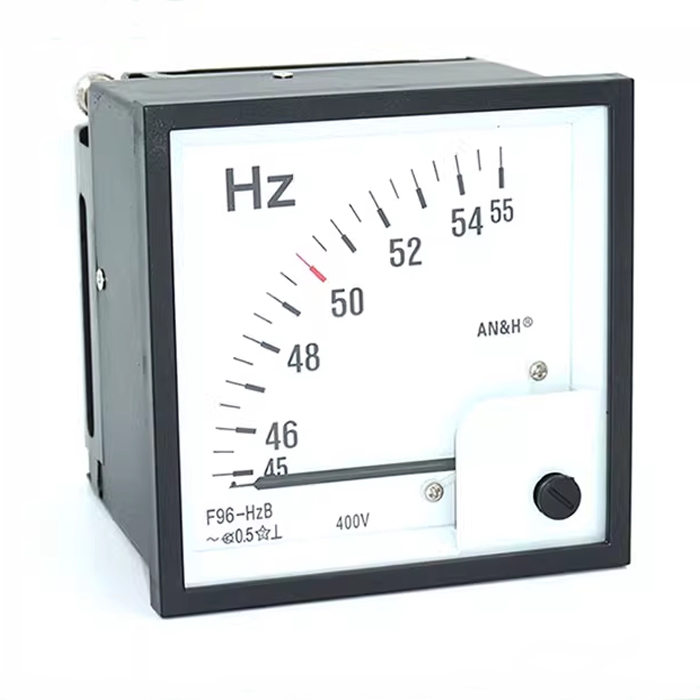

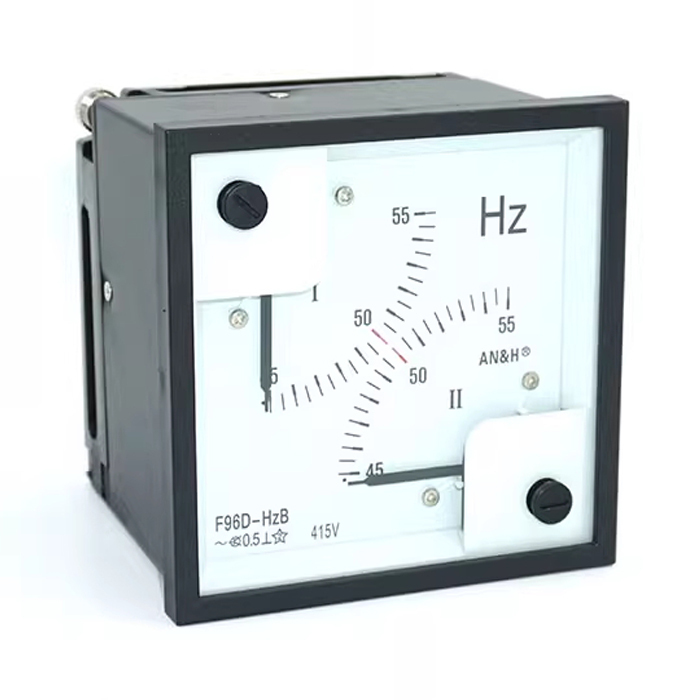

Q96D-HC/Q96D-HCA/Q144D Marine Frequency Meter

Item No.: 03242
Marine frequency HZ meter is high accuracy and large angle.The meter have linear scale,and won't affect by the magnetic filed outside,all adopt printed dial,colorized dial,scale is very clear,look neat and beautiful.
Request Quote
Description
Description
Q96D-HC/Q96D-HCA/Q144D Marine Frequency Meter
Name: Frequency Meter, Shockproof for Ships and Land Use
Model: F72-HZB

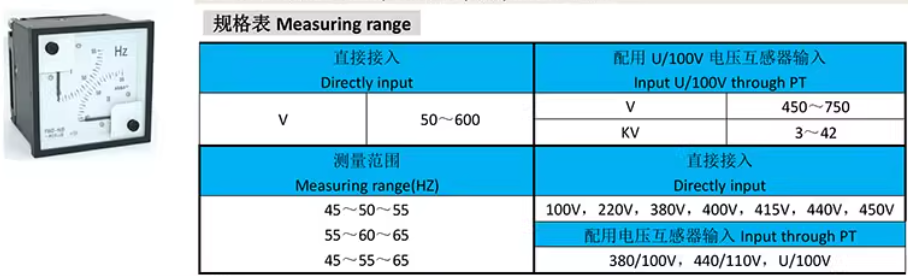

Specifications: 45-55Hz; please specify model and specifications when placing an order
Angle: 90-degree display (240-degree wide-angle display available upon request; price negotiable)
Grade: 0.5
Case: Metal housing, wiring base plate and protective cover (reinforced plastic), glass (3mm thick tempered glass)
Weight: 0.35kg
Warranty: 12 months
Standard: GB/T 7676
Protection Level: IP54
Dimensions: External dimensions 72x72x88mm, Cutout dimensions 68x68mm, Internal dimensions 66x66mm, Depth: 80mm (including protective cover)
Packaging: Inner shockproof foam box, outer carton
Quantity: Large box: 48 pieces, Small box: 36 pieces
Courier: Standard courier by default (please contact the store for other courier options) (For example, SF Express)
Structural Features: Shockproof pointer meter, quality guaranteed, high mechanical shock resistance, satisfactory operation at 0.7g acceleration.
AC meter is a DC meter with an external transistor rectifier circuit, resulting in low power consumption.
Main Technical Specifications
Environmental Conditions: -25°C to +40°C (AC meter 0°C to +40°C)

Relative Humidity: 25% to 80%

Mechanical Resistance: High mechanical shock resistance, satisfactory operation at 0.7g acceleration. Can withstand transportation shock of 150m/s and a shock frequency of 80-120 shocks per minute for 2 hours.

Proof Voltage: AC 50Hz, AC 2000V for 1 minute.

Weight: Less than 1kg

Working Position: Vertical (⊥)
