Name: JBK3-160VA Marine Control Transformer
Brand: WEITONG MARINE
SKU: 03008
Availability: InStock
Rating: 5 (1 reviews)

Home > Marine Instrument > Marine Charging Power

Description

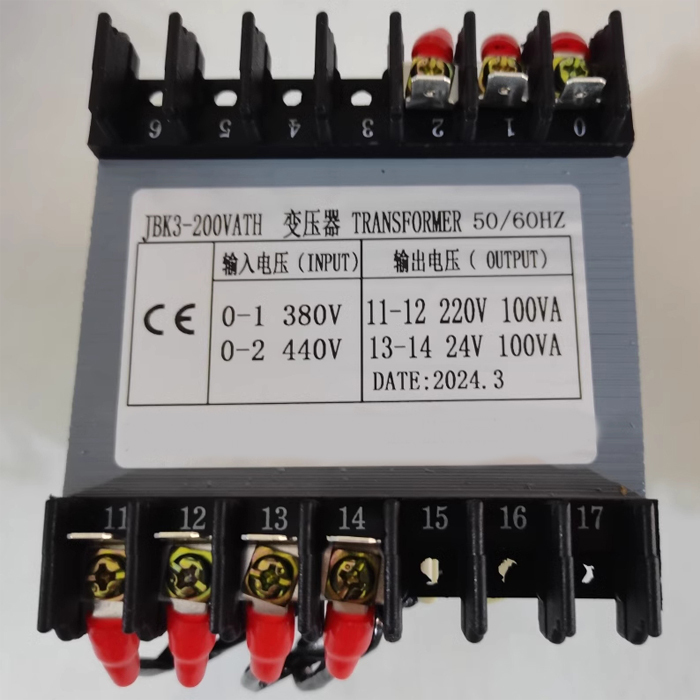

JBK3-160VA Marine Transformer

Structure：

The single-phase multiple winding open-type transformers is adopted for JBK3 series control transformer, the main structure is shown as follows:
1. Shell-type is used as iron core, which is laminated;
2. Winding can be two-winding or multi-winging;
3. Plug-and-socket and pressure welding styles are adopted as terminal.

Technical Specifications

Type	Rated capacity （VA）	Primary rated voltage （V）	Secondary rated voltage （V）
JBK3-40	40	220 380 380±5% 440	6,24,36,110 6-24-110 36-110 127 220 380 440
JBK3-63	63
JBK3-100	100
JBK3-160	160
JBK3-250	250
JBK3-400	400
JBK3-630	630
JBK3-800	800
JBK3-1600	1600
JBK3-2500	2500

Dimensions	B	D	E	Hole		Mounting hole
Type	max	max	max	Hole		K×J
Type	max	max	max	A	C	K×J
JBK3-40，63	83	85	90	56±0.4	46±2.5	4.8×9
JBK3-100	86	105	94	64±0.4	63±2.5	4.8×9
JBK3-160	98	105	109	84±0.4	71±3.0	5.8×11
JBK3-250	98	120	109	84±0.4	85±3.0	5.8×11
JBK3-400	122	105	125	90±0.4	85±3.0	5.8×9
JBK3-630	152	115	150	122±0.5	90±3.5	7×13
JBK3-800	152	132	150	122±0.5	106±3.5	7×13
JBK3-1000	160	210	150	126±3.5	152±3.5	7×12
JBK3-1600	184	235	165	146±3.5	176±3.5	7×12
JBK3-2500	210	265	171	174±3.5	200±3.5	8.5×16
