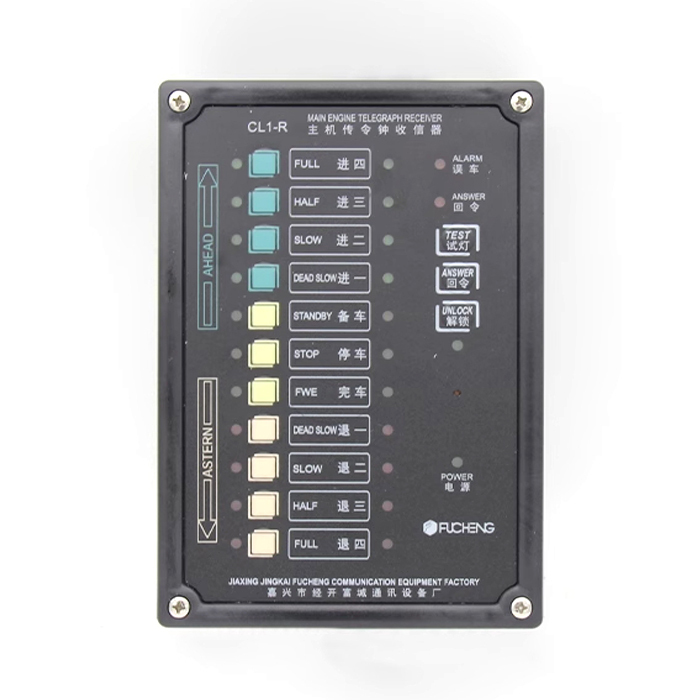

FUCHENG CL1-RG/CL1-R Marine Main Engine Telegraph Receiver

Item No.: 02937
The Telegraph System CL1 series is designed for sending and answering rotation rate and execution status of the main engine between wheelhouse and engine room. lt's agood choice for all kinds of vessels as main engine telegraph and spare engine telegraph.
Description
Description

CL1-RG/CL1-R Marine Main Engine Telegraph Receiver

Power supply: DC24V
Alarm sound pressure level: 80dB~90dB
Passive contact load (resistance): 2A/30VDC 1A/125VAC
Maximum shift voltage of passive contact: 240VAC/120VDC
Active output capacity: DC24V/1A
Color: black(RAL 9005)
IP class: IP44
Weight: 1.06Kg
Power: 5W
Stuffing box cable entrance hole size: 3-Φ14mm
