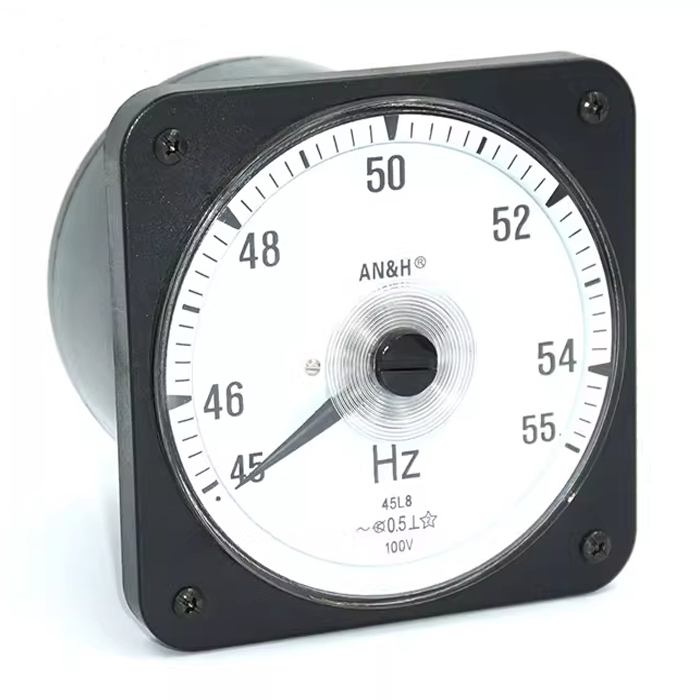

63L19-HZ/45D1-HZ/2108A/AH110A Marine frequency Meter

Item No.: 03225
Marine frequency HZ meter is high accuracy and large angle.The meter have linear scale,and won't affect by the magnetic filed outside,all adopt printed dial,colorized dial,scale is very clear,look neat and beautiful.
Description
Description
63L19-HZ/45D1-HZ/2108A/AH110A Marine frequency Meter

Name: Frequency Meter; Shockproof Instrument for Ships (Land), Train and Locomotive Instruments
Model: 2108A, AH110A
Specifications: 45-50-55 Hz, 55-60-65 Hz, 45-55-65 Hz
Angle: Wide 240-degree display
Grade: 0.5
Case: Plastic
Frequency: 50Hz or 60Hz
Weight: 0.65kg
Warranty: 12 months
Standard: GB7676
Protection Rating: IP44
Dimensions: 110x110x116mm; Hole Diameter: 101mm; Four Mounting Screws: 90x90mm (M5); Depth: 95mm
Packaging: Shock-proof foam inner box, cardboard outer box
Quantity: 18 per small box, 27 per large box
Express Delivery: Standard Express (please contact the store for other options, such as SF Express)
Structural Features: Shock-proof pointer meter, quality guaranteed, high mechanical shock resistance, satisfactory operation at 0.7g acceleration.
The AC meter is a DC meter with an external transistor rectifier circuit, resulting in low power consumption.
Main Technical Specifications
Environmental Conditions: -25°C to +40°C (0°C to +40°C for AC)

Relative Humidity: 25% to 80%

Mechanical Resistance: Highly resistant to mechanical shock, operating satisfactorily at 0.7g acceleration. Withstands transportation shocks of 150m/s and 80-120 shocks per minute for 2 hours.

Voltage Resistance: AC 50Hz, AC 2000V for 1 minute.

Weight: Less than 1kg

Working Position: Vertical (⊥)
