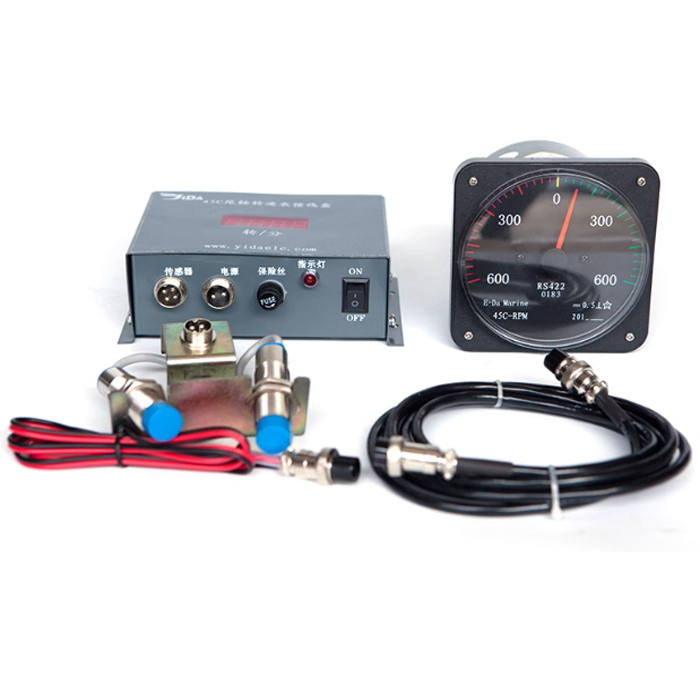

45C-RPM Stern Shaft Speed Meter With Sensor

Item No.: 03038
Digital signal transmission type, users can connect this system to a computer. It includes a rudder angle indicator, a rudder angle sensor and a sensor link.
Description
Description
45C-RPM Stern Shaft Speed Meter With Sensor


Rudder angle indicator

Power supply: DC10-40V, standard: DC24V/12v

Measuring range: ±45°

Accuracy level: 1

Display: pointer and digital backlight display

Material: aluminum/polyamide

Working temperature: -40~60℃C

Advantages: watertight, impact and shock resistance (10 kg), friction resistance

Rudder angle sensor

Adopt high-precision angle sensor, output NEMA0183 rudder angle signal

Deviation: less than ±0.1°

Input signal: NEMA 0183 signal

Interface: RS422/RS485/RS232

Material: ABS

Working temperature: -40~60℃C

Protection level: IP65

Advantages: good sealing, splashproof.
